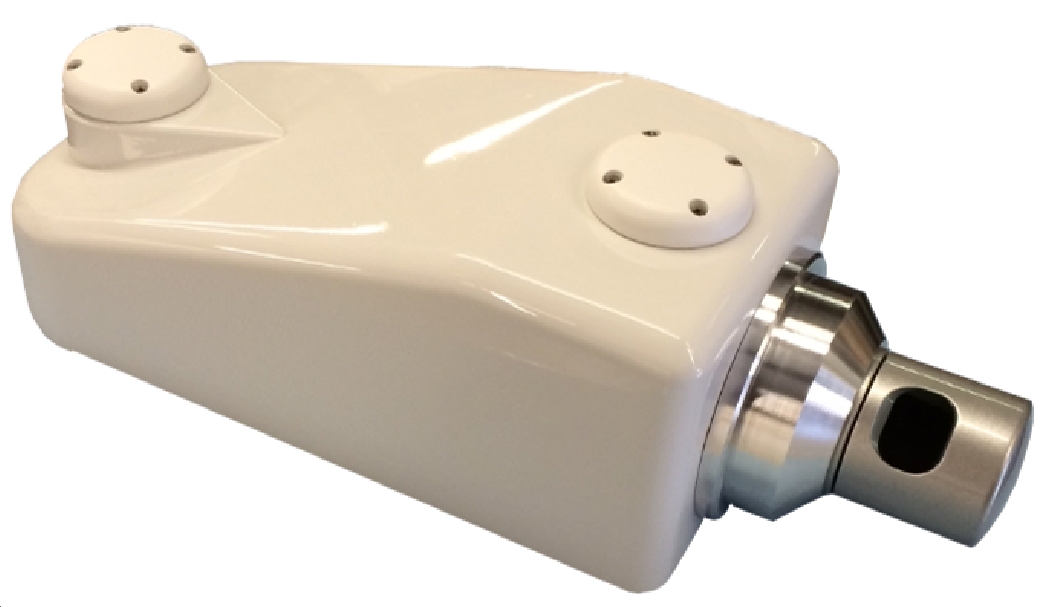

InteLAS
Factory calibrated multi-purpose mobile scanning system
The InteLAS™ (Integrated LiDAR Acquisition System) mobile mapping system represents
the very latest in dynamic geospatial data collection technology. The system comes
fully calibrated and ready to operate, complete with its own 3D data acquisition and visualisation software.

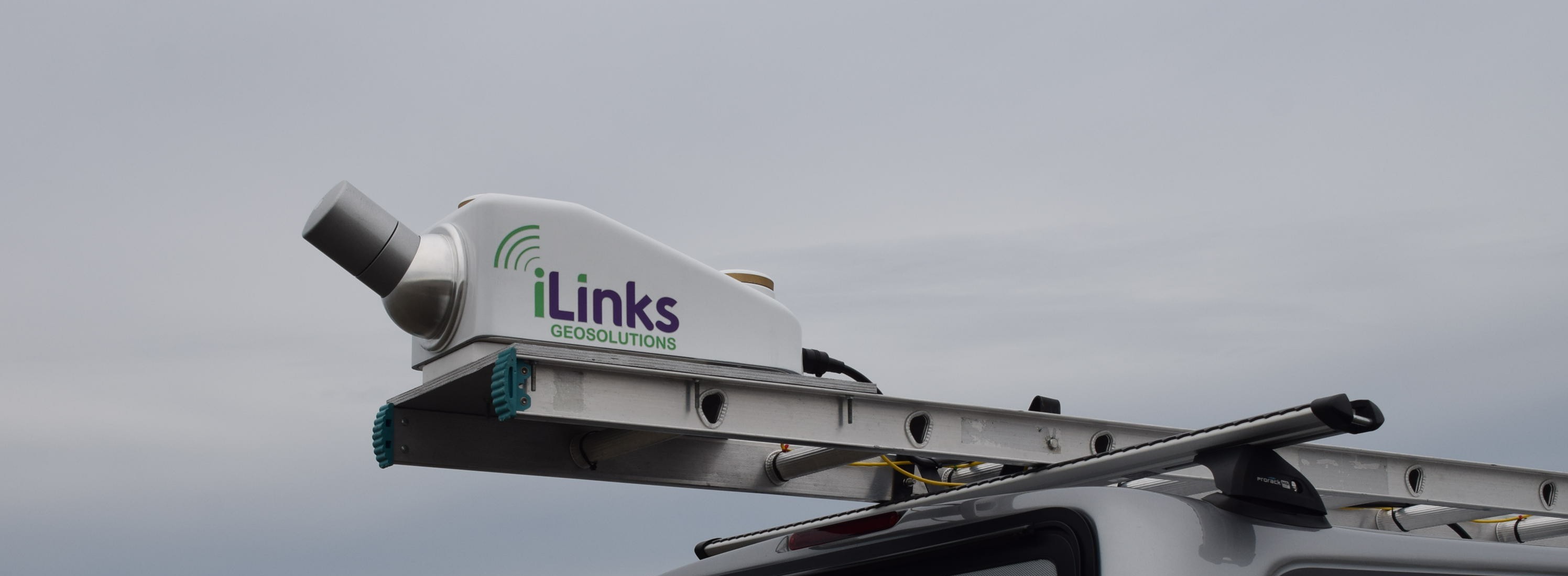

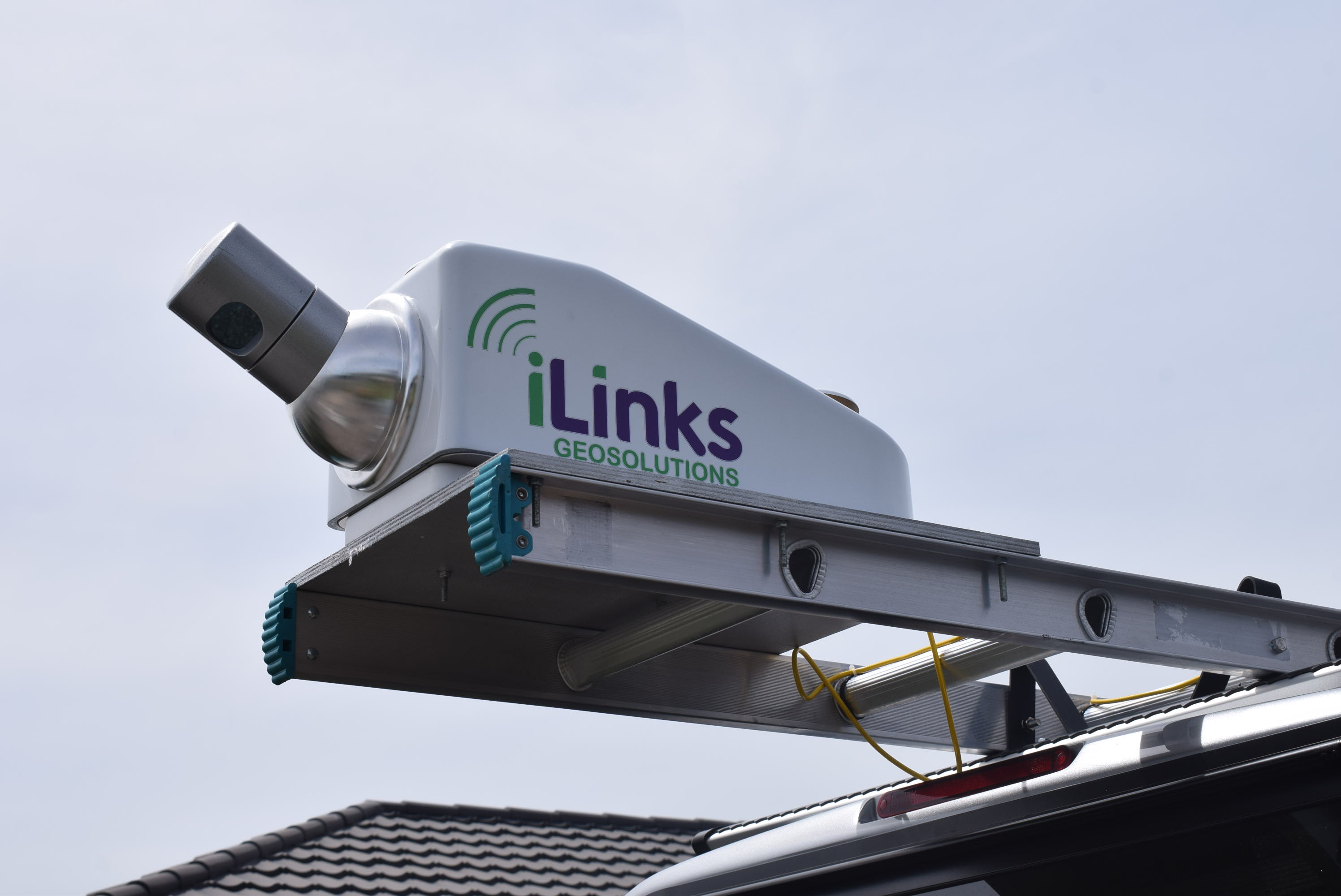

InteLAS mounted on a vehicle of opportunity

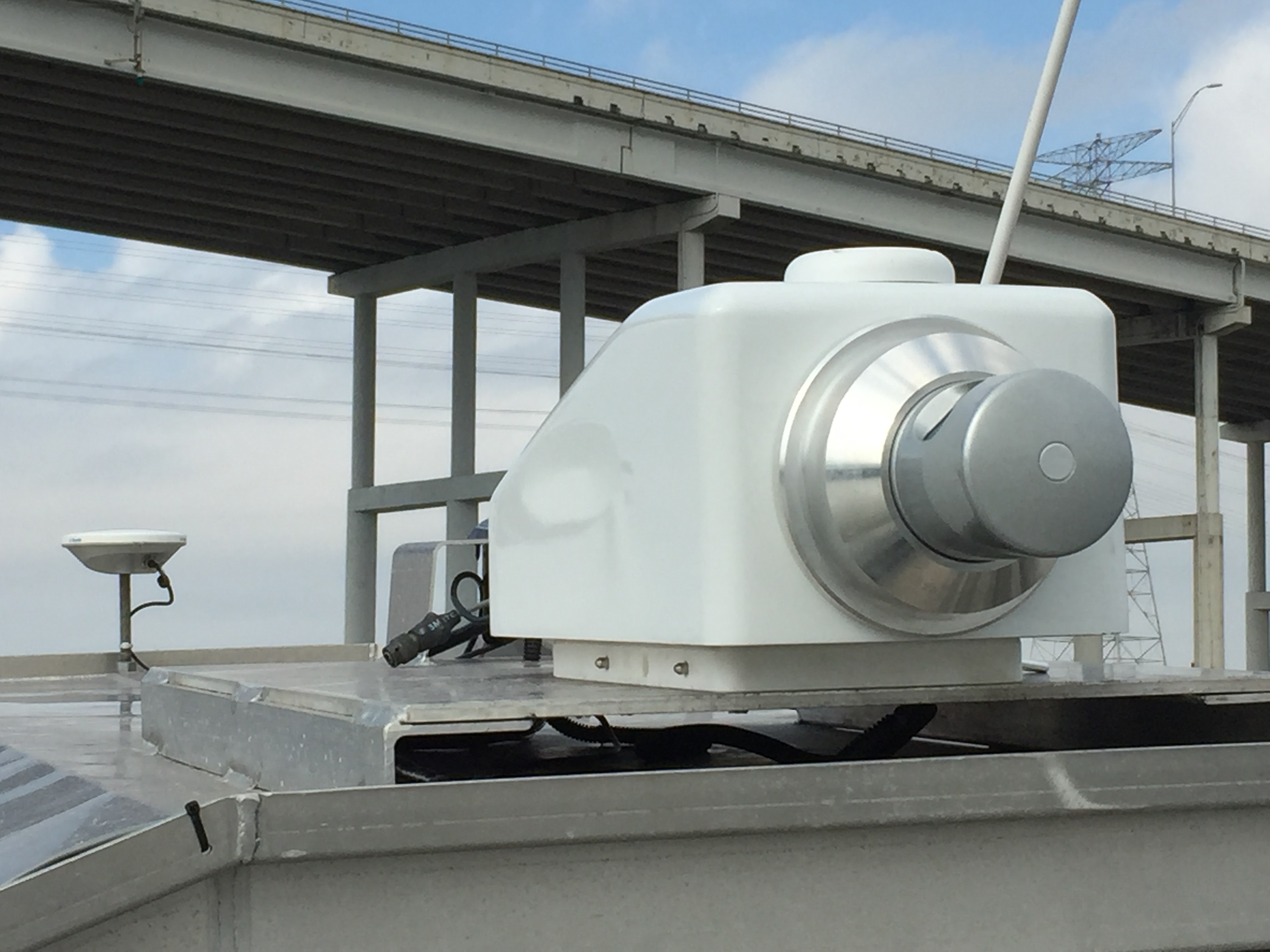

InteLAS mounted on a vessel of opportunity

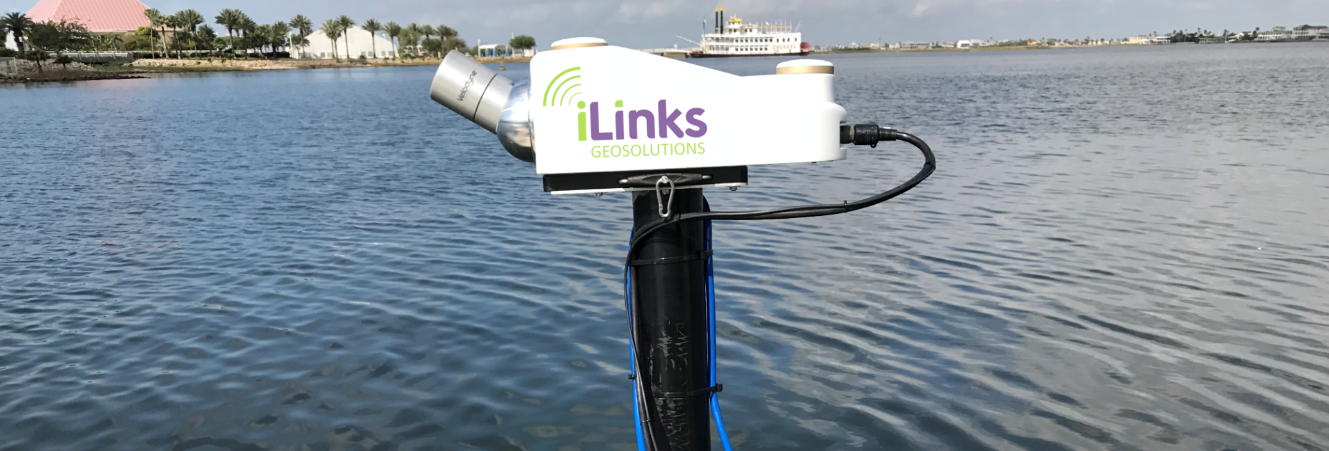

InteLAS mounted on multibeam pole

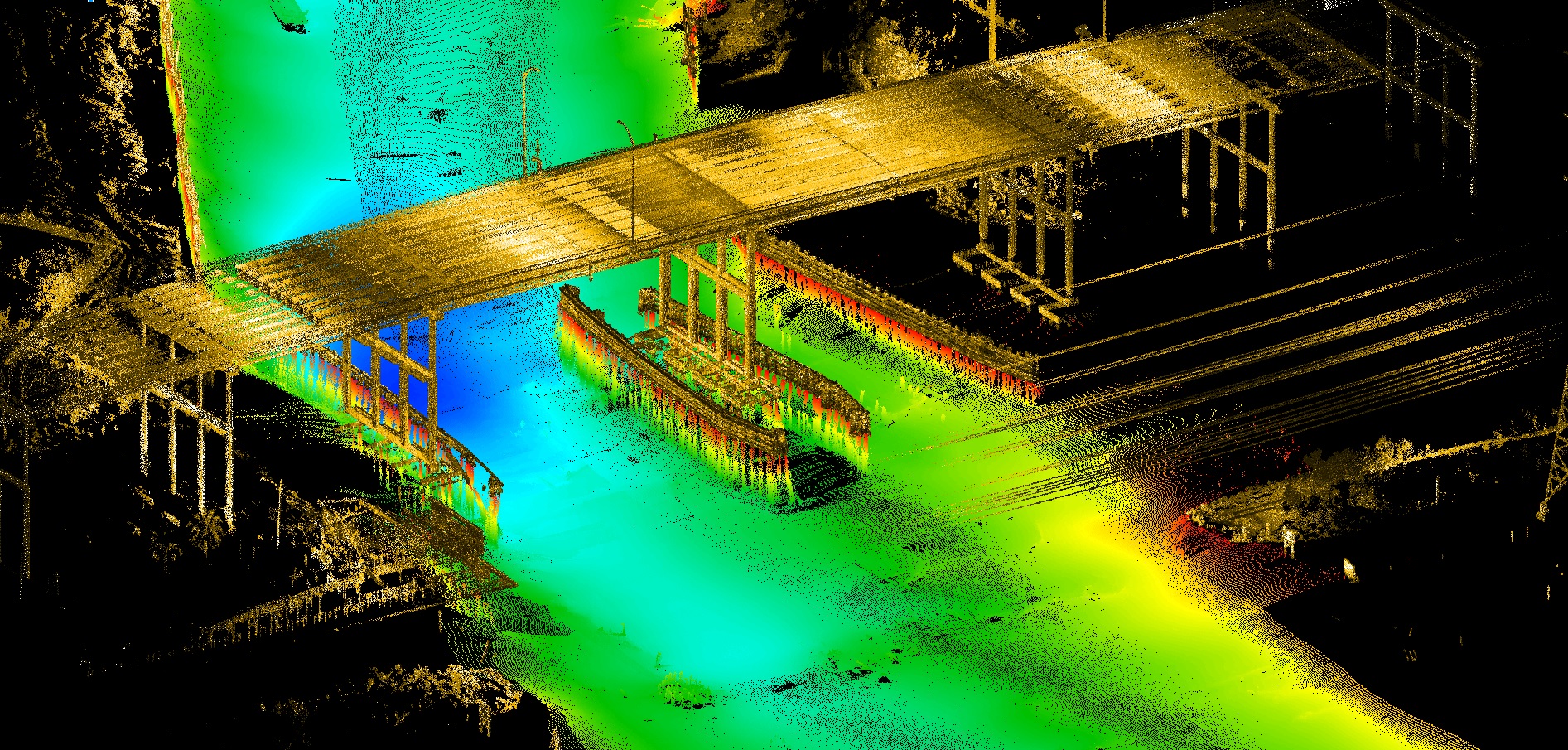

InteLAS data combined with multibeam data

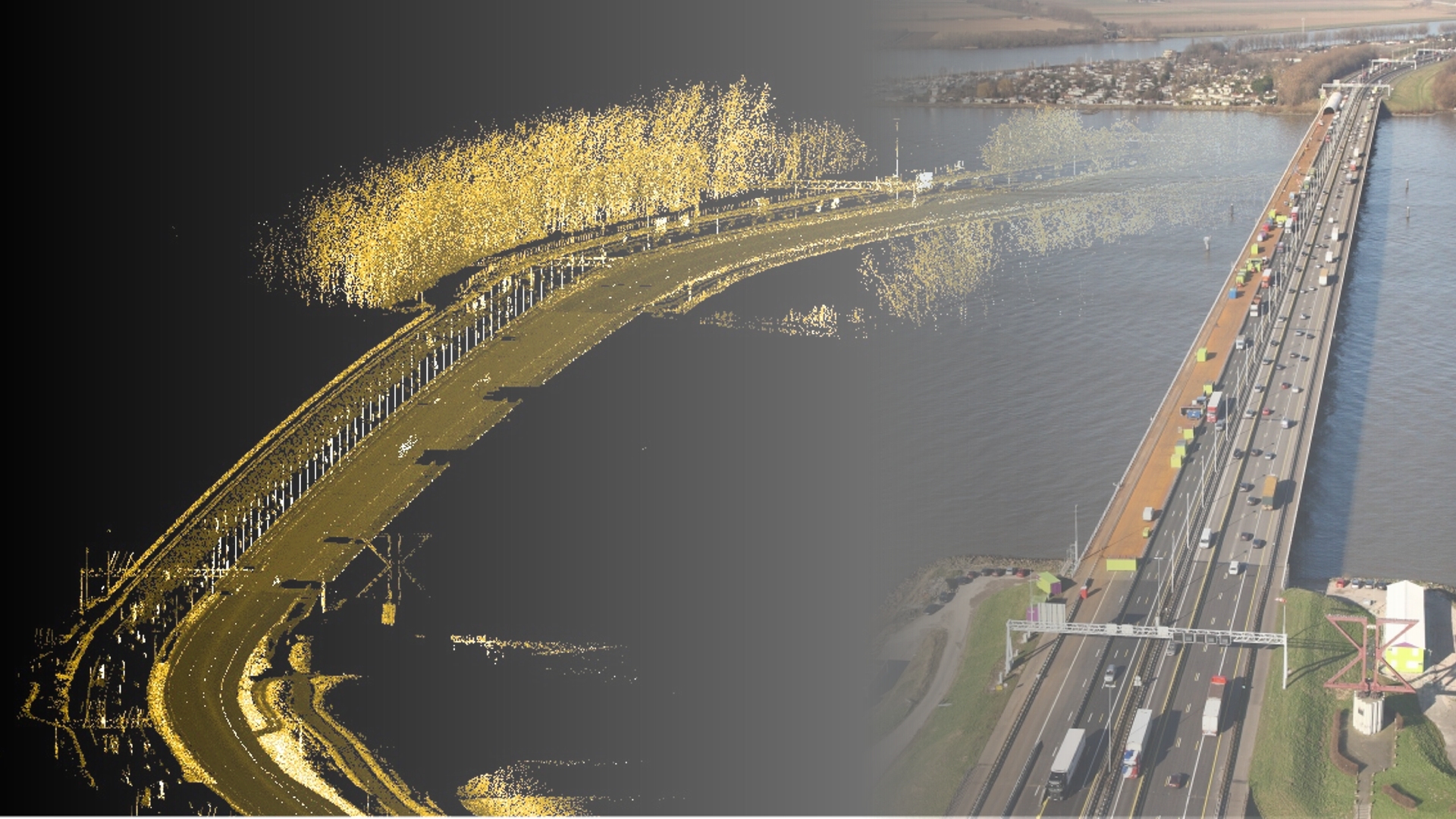

InteLAS data next to photo of real-world scene

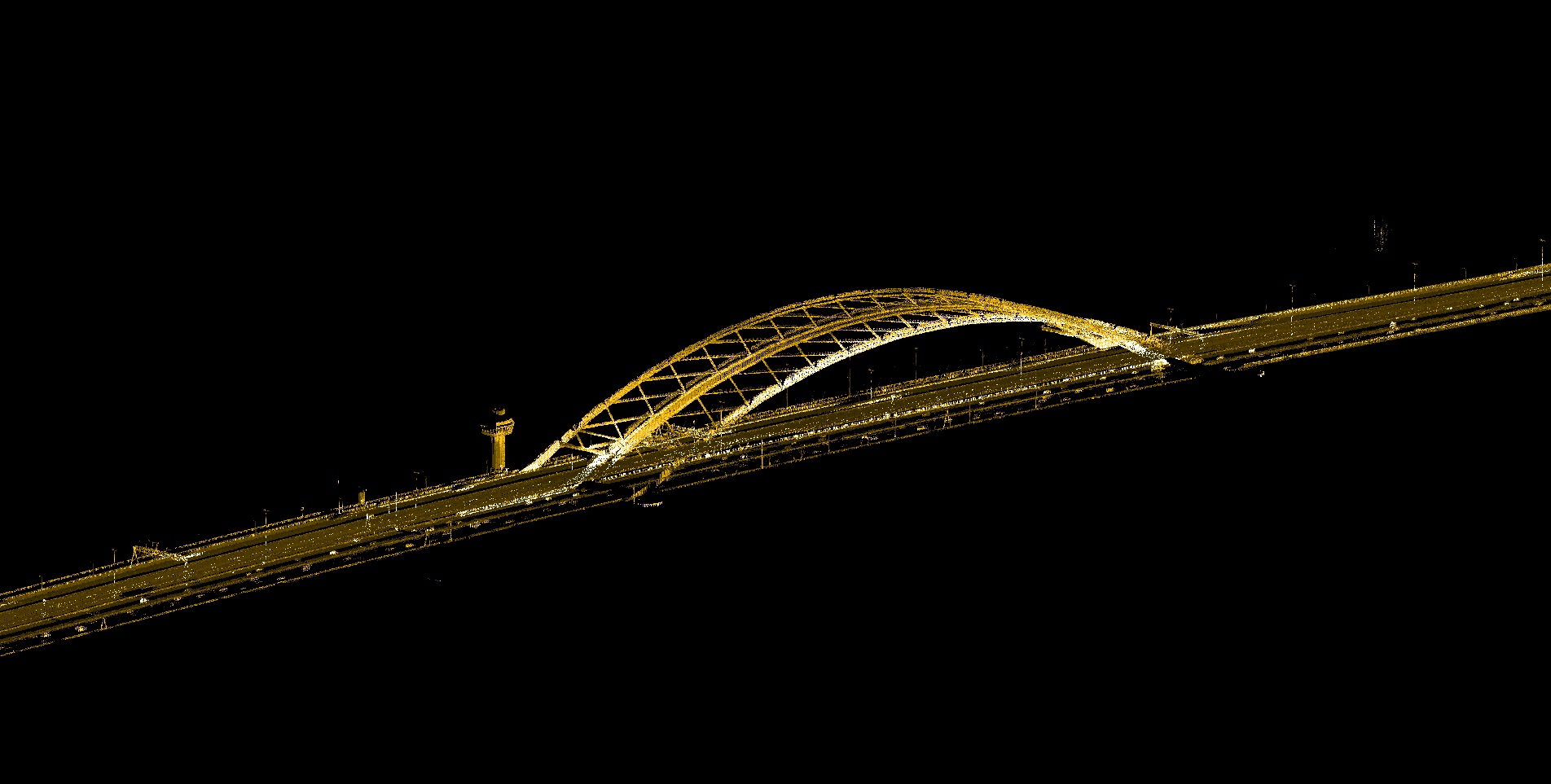

Real-time collected data at highway speed

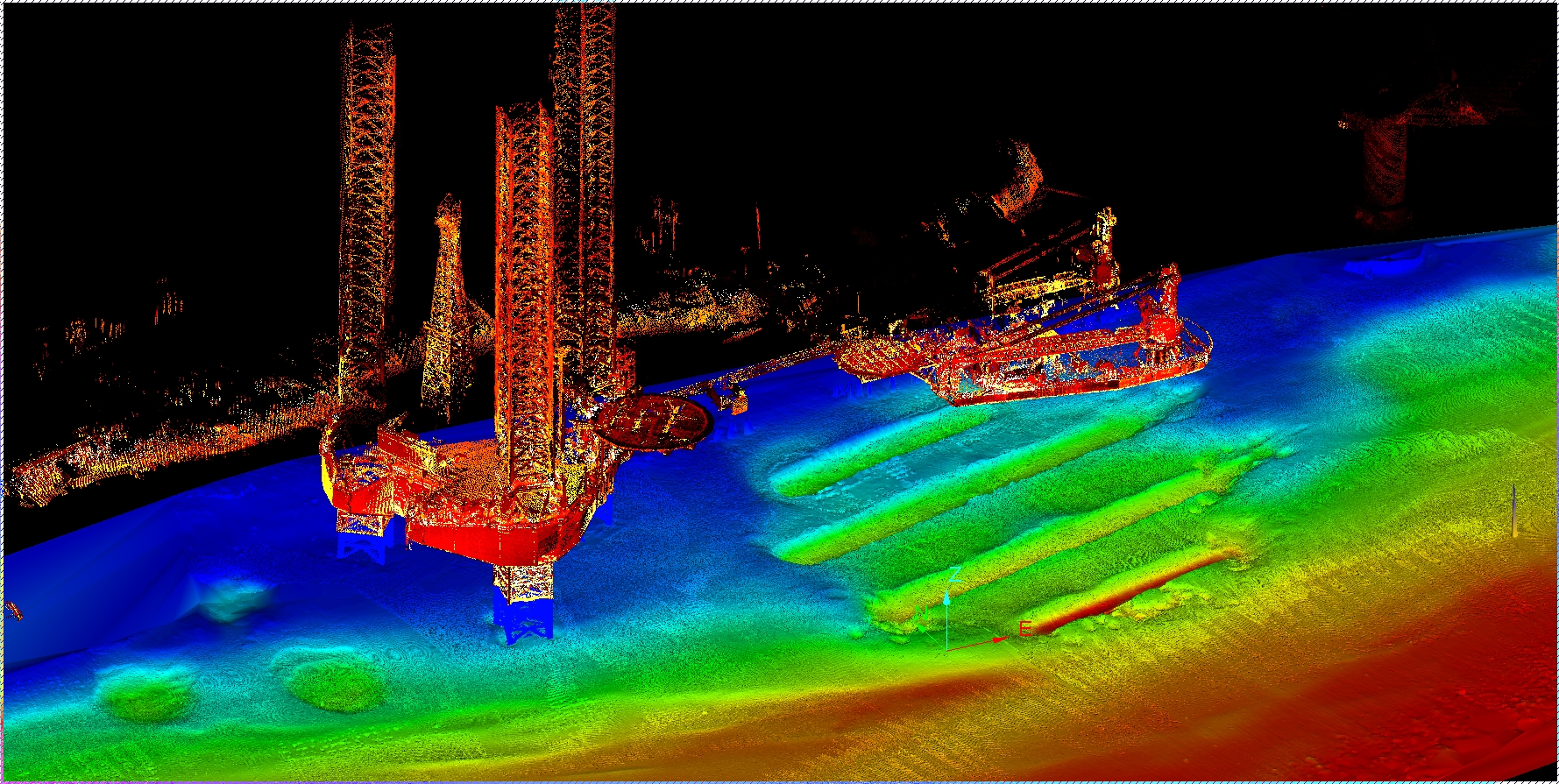

InteLAS data combined with multibeam data

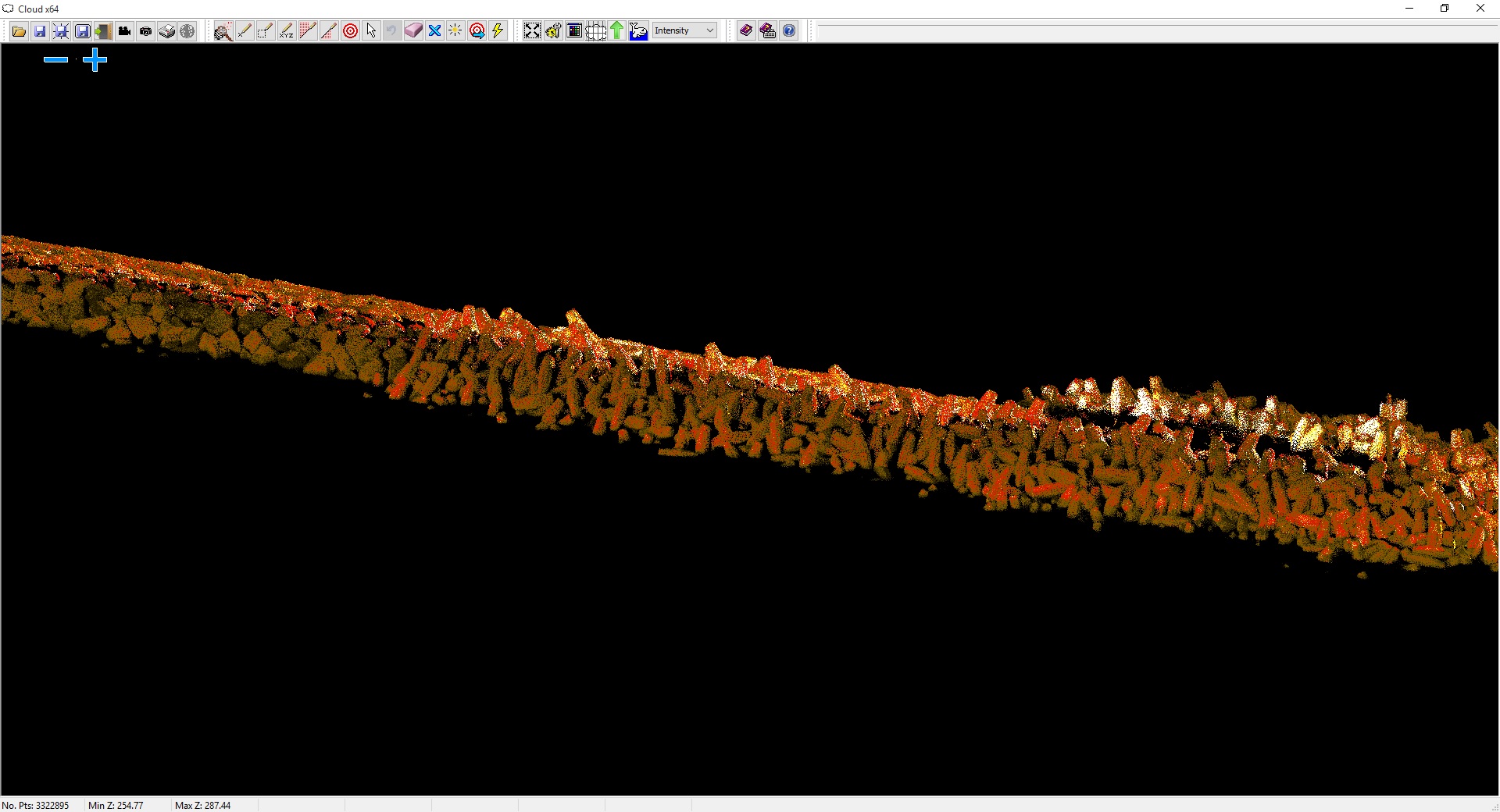

InteLAS data collected from vessel
Key Features
- 700,000 points per second
- Integrated GNSS, IMU, FOG
- Requires no user calibration
- Survey speeds up to 70 mph
- No post processing required
Detailed Overview
Delivering up to 700,000 data points per second, the
system can be used at near highway speeds and is ideally
suited to any number of applications including; highway
planning, bridge, height and width, asset management,
railroad surveys, corridor mapping, power line surveys,
pipeline surveys , volumes and much more.
The compact form factor and light weight of the
InteLAS™ allows the system to be fitted to almost any
type of mobile platformin a matter of minutes.
The system has been designed to be simple to mobilise
and easy to operate without the need for specialised
training or qualifications. Being able to rapidly acquire
accurate geospatial data in real time, without the need
for post processing, not only offers a number of cost and
efficiency benefits to existing operations, it also helps
create new business and market opportunities.
The InteLAS™ is delivered as a fully calibrated ready
to go mobile mapping system, complete with PC and
software. The system requires no user calibration or
configuration and can be mounted on any type of
mobile platform and be ready to acquire accurate 3D
Geospatial data within minutes.
Technical Specifications
- 32 laser/detector pairs (905nm Class-1 Eye Safe)
- Horizontal Field of View: +10.67° to -30.67°
- Vertical Field of View: 360°
- Range: 1m to typically 80m - 100m
- Accuracy < 2cm (1σ at 25m)
- Pitch Accuracy: 0.015°
- Roll Accuracy: 0.015°
- Heading Accuracy (Stand Alone): 0.050°
- Heading Accuracy (External Antenna - 1 m Baseline): 0.030°
- Heading Accuracy (External Antenna - 2 m Baseline): 0.020°
